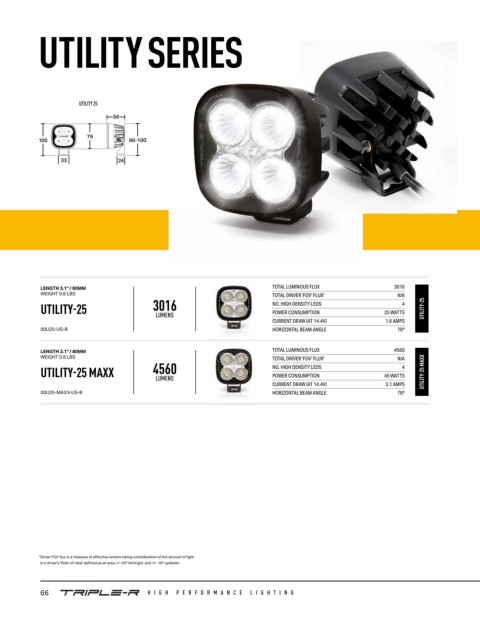

Page 66 - Product Catalogue December 2023
P. 66
UTILITY SERIES
111 ° UP
32 ° DOWN 7.4 ° UP
2.5 ° DOWN
UTILITY 25
56
79
100 86-100
33 24
56
86 79 86
33 24
TOTAL LUMINOUS FLUX 3016
LENGTH 3.1" / 80MM
WEIGHT 0.8 LBS TOTAL DRIVER 'FOV' FLUX † N/A
UTILITY-25 3016 NO. HIGH DENSITY LEDS 4 UTILITY-25
LUMENS POWER CONSUMPTION 25 WATTS
CURRENT DRAW (AT 14.4V) 1.6 AMPS
00U25-US-B HORIZONTAL BEAM ANGLE 78º
TOTAL LUMINOUS FLUX 4560
LENGTH 3.1" / 80MM
WEIGHT 0.8 LBS TOTAL DRIVER 'FOV' FLUX † N/A
UTILITY-25 MAXX 4560 NO. HIGH DENSITY LEDS 4 UTILITY-25 MAXX
LUMENS POWER CONSUMPTION 45 WATTS
CURRENT DRAW (AT 14.4V) 3.1 AMPS
00U25-MAXX-US-B HORIZONTAL BEAM ANGLE 78º
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light
in a driver's 'field-of-view' defined as an area +/- 45º left/right, and +/- 10º up/down.
