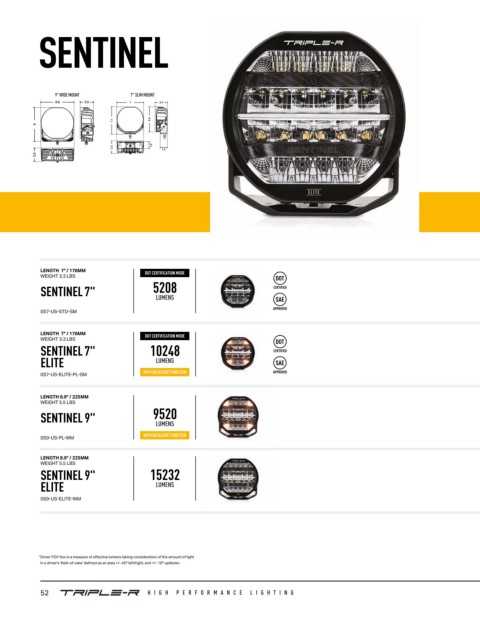

SENTINEL

9" WIDE MOUNT 7" SLIM MOUNT
8.6 3.5 7 8.6 3.2 3.5 7 3.2

9 7.1 6.6 7.1 6.6
9

3.2 1.9 1.9 3.2 1.9 1.9
3.5 3.5

8.6 3.5 8.6 3.5

9 9

3.5 3.5

LENGTH 7" / 178MM DOT CERTIFICATION MODE
WEIGHT 3.3 LBS
SENTINEL 7" 5208
LUMENS

0S7-US-STD-SM

LENGTH 7" / 178MM DOT CERTIFICATION MODE
WEIGHT 3.3 LBS
SENTINEL 7" 10248
ELITE LUMENS

WITH BACKLIGHT FUNCTION
0S7-US-ELITE-PL-SM

LENGTH 8.9" / 225MM
WEIGHT 5.5 LBS
SENTINEL 9" 9520
LUMENS
WITH BACKLIGHT FUNCTION
0S9-US-PL-WM

LENGTH 8.9" / 225MM
WEIGHT 5.5 LBS
SENTINEL 9" 15232
ELITE LUMENS

0S9-US-ELITE-WM

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light
in a driver's 'field-of-view' defined as an area +/- 45º left/right, and +/- 10º up/down.
