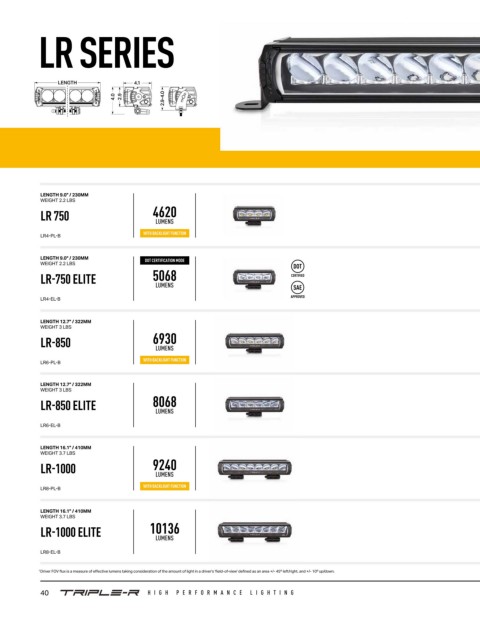

LR SERIES
LENGTH 4.1
2.9-4.0
4.0 2.9
A B
D C E
LENGTH 9.0" / 230MM
WEIGHT 2.2 LBS
LR 750 4620
LUMENS
WITH BACKLIGHT FUNCTION
LR4-PL-B
LENGTH 9.0" / 230MM DOT CERTIFICATION MODE
WEIGHT 2.2 LBS
LR-750 ELITE 5068
LUMENS
LR4-EL-B
LENGTH 12.7" / 322MM
WEIGHT 3 LBS
LR-850 6930
LUMENS
WITH BACKLIGHT FUNCTION
LR6-PL-B
LENGTH 12.7" / 322MM
WEIGHT 3 LBS
LR-850 ELITE 8068
LUMENS
LR6-EL-B
LENGTH 16.1" / 410MM
WEIGHT 3.7 LBS
LR-1000 9240
LUMENS
WITH BACKLIGHT FUNCTION
LR8-PL-B
LENGTH 16.1" / 410MM
WEIGHT 3.7 LBS
LR-1000 ELITE 10136
LUMENS
LR8-EL-B
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45º left/right, and +/- 10º up/down.
