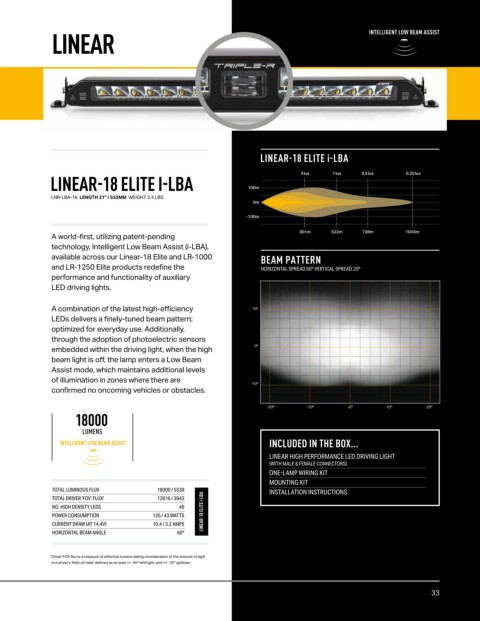

Page 33 - Product Catalogue December 2023

LINEAR

LINEAR 18 ELITE WITH i LBA E BOOST MODE
LINEAR-18 ELITE i-LBA
LINEAR-18 ELITE I-LBA 100m 3lux 1lux 0.5lux 0.25lux

LNR-LBA-18 LENGTH 21" / 532MM WEIGHT 2.4 LBS
0m
-100m

301m 522m 738m 1043m
A world-first, utilizing patent-pending
technology, Intelligent Low Beam Assist (i-LBA),
BEAM PATTERN
available across our Linear-18 Elite and LR-1000
LINEAR 18 ELITE WITH i LBA E MARK COMPLIANT MODE
and LR-1250 Elite products redefine the HORIZONTAL SPREAD 60º VERTICAL SPREAD 20º
performance and functionality of auxiliary
LED driving lights. 3lux 1lux 0.5lux 0.25lux
100m
A combination of the latest high-efficiency 10º
0m
LEDs delivers a finely-tuned beam pattern;
-100m
optimized for everyday use. Additionally, 165m 286m 404m 571m
through the adoption of photoelectric sensors
0º
embedded within the driving light, when the high
beam light is off, the lamp enters a Low Beam
Assist mode, which maintains additional levels
of illumination in zones where there are
-10º
confirmed no oncoming vehicles or obstacles.

-20º -10º -0º 10º 20º
18000
LUMENS 100
INCLUDED IN THE BOX...
0m
-100 LINEAR HIGH PERFORMANCE LED DRIVING LIGHT
(WITH MALE & FEMALE CONNECTORS)
0m 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200
ONE-LAMP WIRING KIT
MOUNTING KIT
TOTAL LUMINOUS FLUX 18000 / 5538 INSTALLATION INSTRUCTIONS
TOTAL DRIVER 'FOV' FLUX † 12816 / 3943
NO. HIGH DENSITY LEDS 48
POWER CONSUMPTION 135 / 43 WATTS LINEAR-18 ELITE i-LBA
CURRENT DRAW (AT 14.4V) 10.4 / 3.2 AMPS
HORIZONTAL BEAM ANGLE 60º

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light
in a driver's 'field-of-view' defined as an area +/- 45º left/right, and +/- 10º up/down.

33
