Universal Corner Light Kit (LH/RH)

Product Code
#UNI-RK-CNR-ST4-US

From $770.00

To $815.00

Universal Single Lamp Mount   + $135.00
ST4 Evolution   + $250.00
Universal Corner Light Kit (LH/RH)

In stock

$770.00

For motorsport customers looking for additional corner lighting for road, track, or off-road events, look no further than our Universal Corner Light Kit. Comprising a pair of ST4 lights, each is fixed using our Universal Single Lamp Mount which provides flexibility to mount the lights considerate of the contours on the vehicle bodywork. Once installed there is flexibility to angle the lights to suit individual requirements.

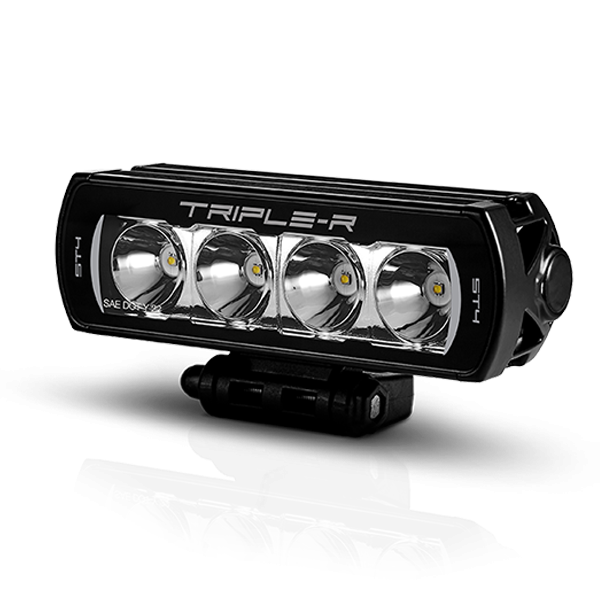

The ST4 lights boast a seamless aero design with the LED and optic arrangement carefully optimised to give an impressive 40 degree left/right spread (each light). With 1 lux extending to 278m from each light, there’s little to be left to the imagination in terms of visibility, especially when combined with any of our bonnet mount rally kits. Still if the preference is for even greater visibility at the sides of the road, the inclusion of clip-on diffuser/reeded lenses permits this option.

With the colour temperature of the lights at 5000K, the ST4s will combine in a perfectly homogenous light distribution when combined with any of our other bonnet/grille mount lighting options. The suitability of the ST4s to motorsport applications is enhanced further by the low power consumption – 47W each lamp, and current draw – 3.3Amps (at 14V).

ASSEMBLY REQUIRED. WIRING KIT(S) SOLD SEPARATELY.



NOT FOR HIGHWAY USE






PAYMENT INFORMATION

Please note all transactions are completed in USD:

For more information visit our Payment Terms page.

DELIVERY INFORMATION

Van icon

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Triple-R Lights warehouse in the US. At the checkout stage, your shipping costs will be calculated. For more information visit our Delivery Information page. Alternatively, We always encourage purchases to be made through one of our local distributors.



For international orders and delivery, please visit www.lazerlamps.com

RETURNS INFORMATION

If you aren't delighted with your purchase, you can return a product within 30 days. For more information visit our Returns page.

Universal Corner Light Kit (LH/RH)

Universal lightweight corner mounting systems

Complete with 2x ST4 Evolution LED driving lights

Quick fit and release functionality

Universally compatible with any vehicle

Supplied with 15 Degree Reeded Lenses

Assembly required

Compatible vehicle wiring kit available – sold separately

Manufactured in the UK

5 year warranty

Technical Specifications

Based on: 1x ST4 Evolution.

Voltage Range (DC) 10-32V
LED Life 50,000 hours
Weight 670 gr
HIGH BEAM FUNCTION
Total Luminous Flux 4136 Lm
Total Driver 'FOV' Flux † 2490 Lm
Colour Temperature 5000K
Number of High Output LEDs 4
Power Consumption 47 Watts
Current Draw (at 14.4V) 3.3 Amps
DIMENSIONS
Width 204 mm
Depth 68 mm
Height 64 mm
PHOTOMETRIC DATA
Horizontal Beam Angle 40°
0.25 lx Line 555 metres
0.5 lx Line 393 metres
1 lx Line 278 metres
3 lx Line 160 metres

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.

What's Included
  • 2x Single Lamp Mount Kit
  • 2x ST4 Evolution LED lamps

Assembly instructions are available in the downloads section below.
