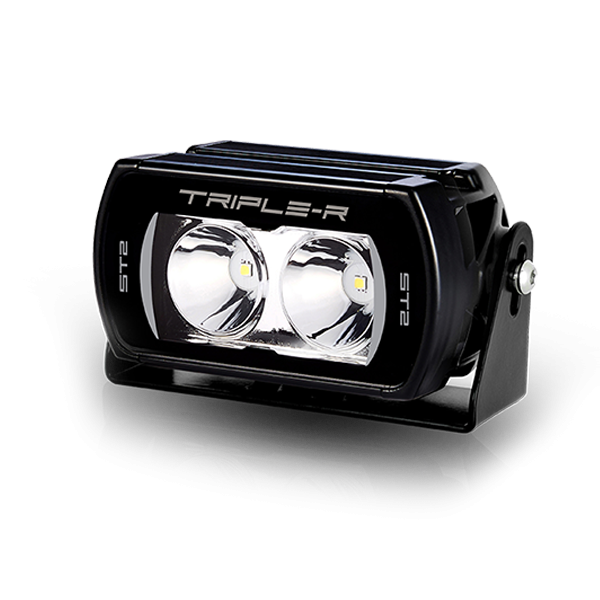

ST2 Evolution

Product Code
#ST2-B

From $160.00

To $205.00

ST2 Evolution   + $160.00
ST2 Evolution

In stock

$160.00

The ST2 Evolution is a hugely versatile LED light which at just under 5” in length delivers incredible lighting performance which belies its diminutive size. A pair of high-density 11W LEDs are carefully selected for their high ‘bin’ rating, and deliver 2,068 lumens. Advanced electronic design, combined with sophisticated thermal management systems, and ultra-reflective vacuum-metallized reflectors, harness the light output into a flood beam pattern optimized for both on and off-road use.

Performance aside, the ST2 Evolution is built to last. With a 5 year warranty as standard, and a lifetime guarantee on the ‘unbreakable’ polycarbonate lens, which is coated with a hardcoat lacquer to protect against any scratches, the lamp is capable of withstanding the harshest environments. An IP69K rating certifies the lamp will not be subjected to moisture or dust ingress, with additional counter-measures to ensure the unit remains fully contained even in the most extreme of temperatures and humidity. The full aluminium housing gives the lamp its strength and rigidity, while an e-coat pre-treatment provides automotive quality corrosion resistance. Dynamic drive modulation optimises light output considering the thermal conditions of the lamp (preserving the longevity of the LEDs).

WIRING HARNESS KIT SOLD SEPARATELY.



PAYMENT INFORMATION

Please note all transactions are completed in USD:

For more information visit our Payment Terms page.

DELIVERY INFORMATION

Van icon

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Triple-R Lights warehouse in the US. At the checkout stage, your shipping costs will be calculated. For more information visit our Delivery Information page. Alternatively, We always encourage purchases to be made through one of our local distributors.



For international orders and delivery, please visit www.lazerlamps.com

RETURNS INFORMATION

If you aren't delighted with your purchase, you can return a product within 30 days. For more information visit our Returns page.

ST2 Evolution

High density, premium ‘bin’ 11W LED technology

5000K LED colour temperature and 80CRI maximises sharpness and definition

Ultra-reflective, vacuum-metallised conical optics deliver excellent spread

Seamless, low profile design facilitates installation and avoids dirt/ice accumulation

Includes ‘U-Shaped Mount’ mounting system

Electronic thermal management system optimises light output to preserve longevity of the LEDs

Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

CAE optimised heatsink offers improved thermal dynamics

Over voltage protected

Reverse polarity protected

‘Unbreakable’ polycarbonate lens with hardcoat lacquer

IP68 watertight

5 year warranty

Supplied with pre-wired male/female 2-pin superseal connectors

Designed and manufactured in UK

Technical Specifications
1x ST2 EVOLUTION

Voltage Range (DC) 10-32V
LED Life 50,000 hours
Weight 0.95 lbs

HIGH BEAM FUNCTION
Total Luminous Flux 2,068 Lm
Total Driver 'FOV' Flux † 1,245 Lm
Colour Temperature 5000K
Power Consumption 23 Watts
Peak Current Draw 1.6 Amps
Connector 2-Pin Superseal (+30cm Cable)

DIMENSIONS
Width 4.9''
Depth 3.3''
Height 2.5''

CERTIFICATION
IP Rating # IP68 / IP69K
Salt Spray Test ISO 9227
Dump Load Protection ISO 7637-2

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle 40° / 25°
0.25 lx Line 393m
0.5 lx Line 278m
1 lx Line 196m
3 lx Line 113m




† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

What's Included
  • x1 ST2 Evolution LED light
  • x1 U-Shaped Bracket (1122K)
  • x1 Installation Instructions
Downloads

CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)

Videos
