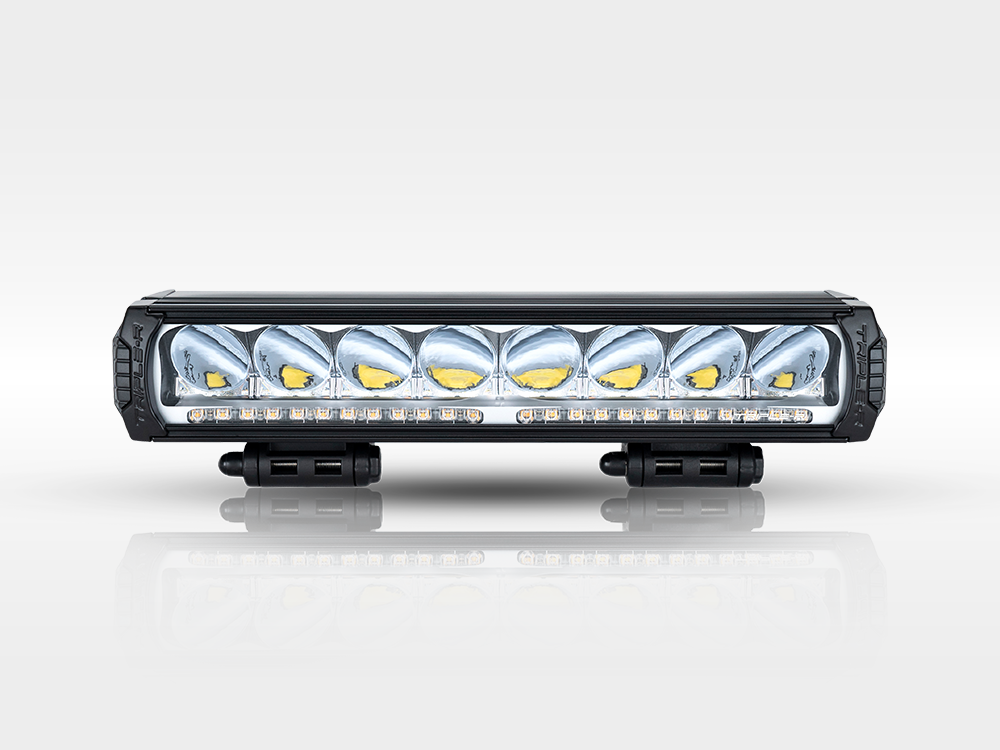

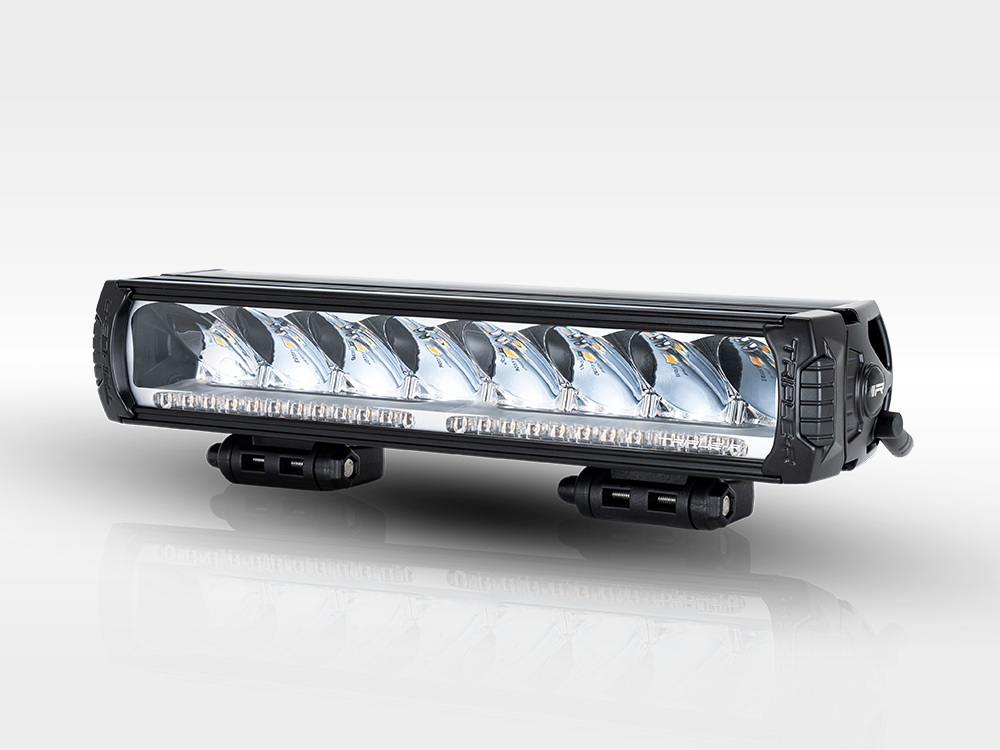

LR-1000 Beacon

Product Code
#LR8-BCN-B

From $545.00

To $715.00

LR-1000 Beacon   + $545.00
LR-1000 Beacon

In stock

$545.00

The iconic LR-1000, is now offered with integrated amber flashing beacon function. Incorporating 16 different forward-facing flash patterns, the additional safety functionality within the lamp, combines with the possibility to connect a white or amber backlight function, as well as the exceptional high beam light function to really set the LR-1000 apart from the competition.

The LR-1000 is a high-performance LED light that delivers a spot beam pattern well suited for either offroad or on-road use. Recent styling updates to the LR Series have resulted in a clean contemporary design, with a more aggressive edge, to match the aesthetic design prevalent on modern vehicles. Boasting 9,240 lumen, and delivering 1 lux to 612m, the auxiliary LED light provides improved left/right spread of light without compromising the up/down spread which ensures suitability of the lights to a wide array of vehicles, including where the lights are mounted high on the vehicle.

Included within the lamp is the option to connect an integrated Backlight function, for when the requirement is for a light installation that gets noticed as much during the day as at night. There is the possibility to connect white or amber colored backlights, simply by inserting the corresponding wire into the lamp connector at the point of installation, or leave both disconnected to have your LR-1000 act as a LED light only.

There are 16 different amber warning light patterns which can be selected and synchronized (between multiple lamps), at the point of installation, or using a momentary switch where the requirement is to change the flash pattern on demand. Examples of the different flash patterns can be seen in the Videos section.

Like all Triple-R Lights products, the LR-1000 with Beacon function has been designed and engineered to deliver a powerful driving light with perfectly homogenous beam pattern. The color temperature of the light, at 5000k, is carefully selected to maximize definition of any obstacles ahead, while ensuring a comfortable drive even over prolonged periods of time. Performance is complemented by a superior build quality, borne out of our in-house UK manufacture, and backed up by our comprehensive 5year warranty.

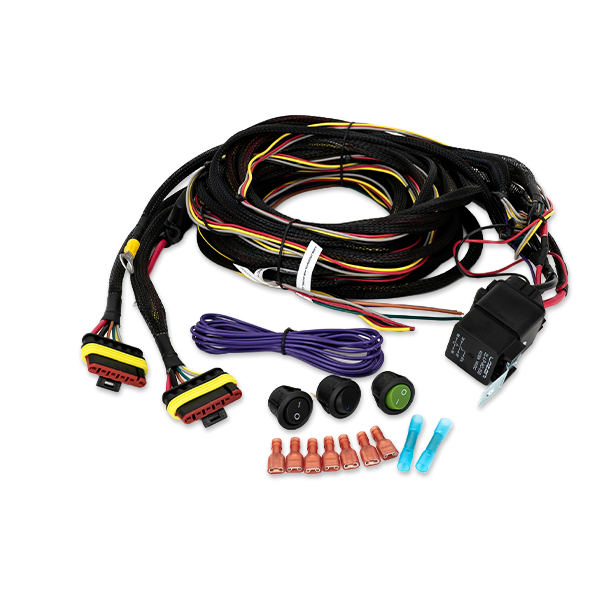

PLEASE NOTE: WIRING HARNESS KIT SOLD SEPARATELY.



NOT FOR HIGHWAY USE



PAYMENT INFORMATION

Please note all transactions are completed in USD:

For more information visit our Payment Terms page.

DELIVERY INFORMATION

Van icon

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Triple-R Lights warehouse in the US. At the checkout stage, your shipping costs will be calculated. For more information visit our Delivery Information page. Alternatively, We always encourage purchases to be made through one of our local distributors.



For international orders and delivery, please visit www.lazerlamps.com

RETURNS INFORMATION

If you aren't delighted with your purchase, you can return a product within 30 days. For more information visit our Returns page.

LR-1000 Beacon

Highly efficient 11W LED technology

Integrated white or amber backlight function

Integrated amber flashing beacon function

Ultra-reflective vacuum-metallized optics deliver spot beam pattern

Contemporary lamp design

Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)

CAE optimized heatsink offers improved thermal dynamics

Anodized pre-treatment and Automotive grade powder top-coat for ultimate corrosion and chemical protection

Electronic thermal management

‘Unbreakable’ and hardcoated polycarbonate lens

IP68 watertight

5-year warranty

Designed & manufactured in UK

Technical Specifications

Based on: 1x LR-1000 Beacon.

Voltage Range 10-32V
LED Life 50,000 hrs
IP Rating  IP68
Weight 3.1 lbs
HIGH BEAM FUNCTION
Total Luminous Flux 9240 Lm
Total Driver 'FOV' Flux † 5572 Lm
Color Temperature 5000k
Number of High Output LEDs 8
Power Consumption 88 Watts
Current Draw (at 14.4V) 6.1 Amps

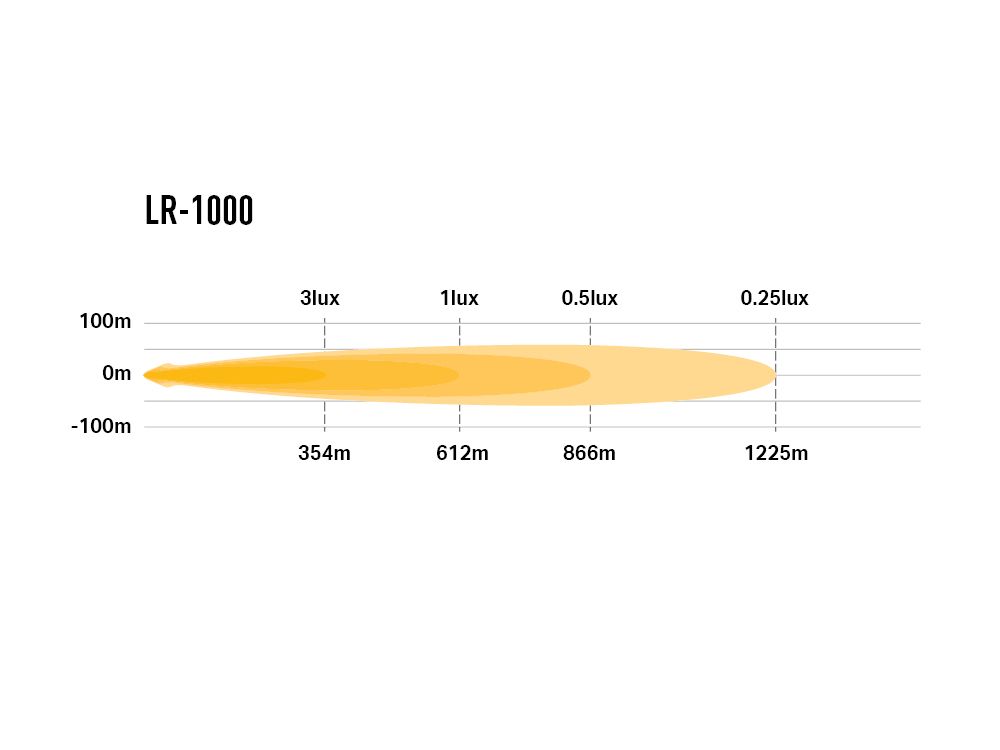

PHOTOMETRIC DATA
Horiz Beam Angle 19 Deg
0.25 lx Line 1225 metres
0.5 lx Line 866 metres
1 lx Line 612 metres
3 lx Line 354 metres

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.

What's Included
  • x1 LR-1000 Beacon LED Light
  • x2 Centre Mount (1114K)
  • x1 Installation Instructions
Downloads

CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)

Videos
