Linear-48

Product Code
LNR-48
$900.00

The Linear-48 utilizes highly efficient 3W LEDs which combine to deliver 18,000 raw lumens, and 1 lux to 550m, with power consumption of 168W. The lamp weighs under 9lbs and with its aerodynamic, sleek design, makes a perfect roof mount solution with virtually undetectable additional wind noise.  Vacuum-metallized high-reflectivity optics are carefully designed and engineered in-house utilizing the latest CAD design and light simulation software, to deliver optimum light distribution in a drive beam pattern (50 degrees spread). The color temperature of the light at 5000K is carefully selected for its natural appearance proven to reduce driver fatigue.

The clean design of the Linear range provides for a premium look to impress on any vehicle. Supplied stainless steel side brackets allow flexibility in the mounting location and position, while anti-theft fasteners means the light will stay safe and secure.

Like all Triple-R light bars the Linear range benefits from a comprehensive 5 year warranty, and a lifetime guarantee on the polycarbonate lens. Dynamic control modulation, which regulates the light output considering any extreme environmental and thermal conditions of the lamp, helps protect the electronic components from heat damage, and ensures the light performs as well today as it will in many years’ time.



NOT FOR HIGHWAY USE






PAYMENT INFORMATION

Please note all transactions are completed in USD:

For more information visit our Payment Terms page.

DELIVERY INFORMATION

Van icon

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Triple-R Lights warehouse in the US. At the checkout stage, your shipping costs will be calculated. For more information visit our Delivery Information page. Alternatively, We always encourage purchases to be made through one of our local distributors.



For international orders and delivery, please visit www.lazerlamps.com

RETURNS INFORMATION

If you aren't delighted with your purchase, you can return a product within 30 days. For more information visit our Returns page.

Linear-48

Aerodynamic design virtually eliminates wind noise from roof installations

Highly efficient 3W LED technology

Contemporary design features enhance vehicle aesthetics

Automotive grade corrosion resistance

Reduced up/down spread of light eliminates glare from roof installations

Anti-theft security fixings supplied as standard

Electronic thermal management

Pressure equalization through GoreTex Breather technology

One-Lamp Harness Kit included with lamp

‘Unbreakable’ polycarbonate lens with hardcoat lacquer

IP68 watertight

5 year warranty

Supplied with male/female connectors (pre-wired)

Designed & manufactured in the UK

Technical Specifications
Voltage Range 10-32V
LED Life 50,000 hours
IP Rating IP68
Weight 8.8 lbs
HIGH BEAM FUNCTION
Total Luminous Flux 18000 Lm
Total Driver 'FOV' Flux † 12816 Lm
Color Temperature 5000K
Number of High Output LEDs 48
Power Consumption 168 Watts
Current Draw (at 14.4V) 11.7 Amps

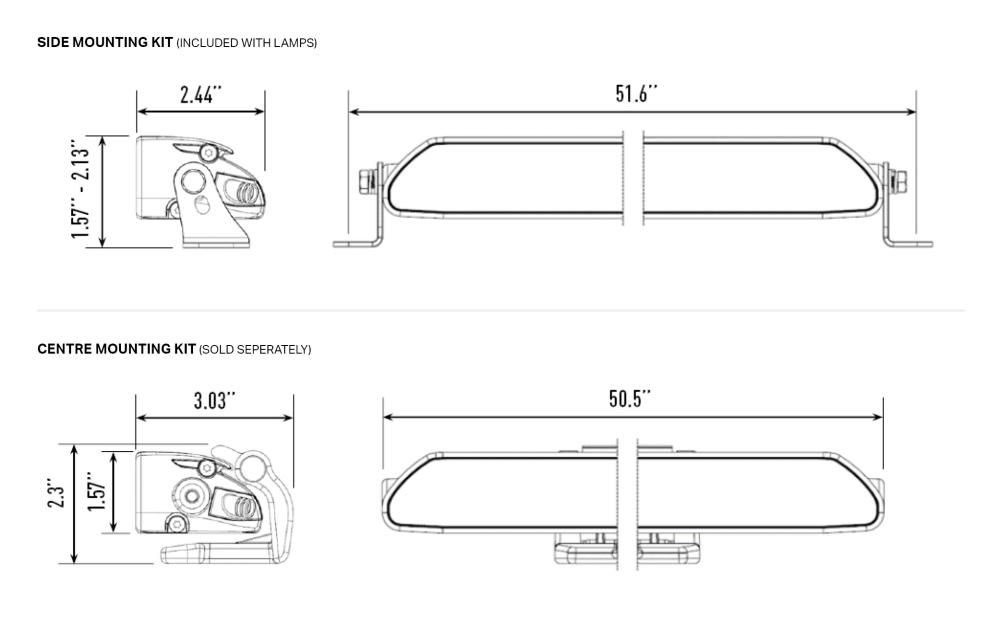

DIMENSIONS
Width 50.5"
Depth 2.44"
Height 1.57"
PHOTOMETRIC DATA
Horizontal Beam Angle 50 degrees
0.25 lx Line 1101 metres
0.5 lx Line 779 metres
1 lx Line 550 metres
3 lx Line 318 metres

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.

What's Included
  • 1x Linear-48 LED Light
  • 1x Anti-Theft Side Mount Kit (1127K)
  • 1x One-Lamp Harness Kit (1L-LP-300)
  • 1x Fitting Instructions
