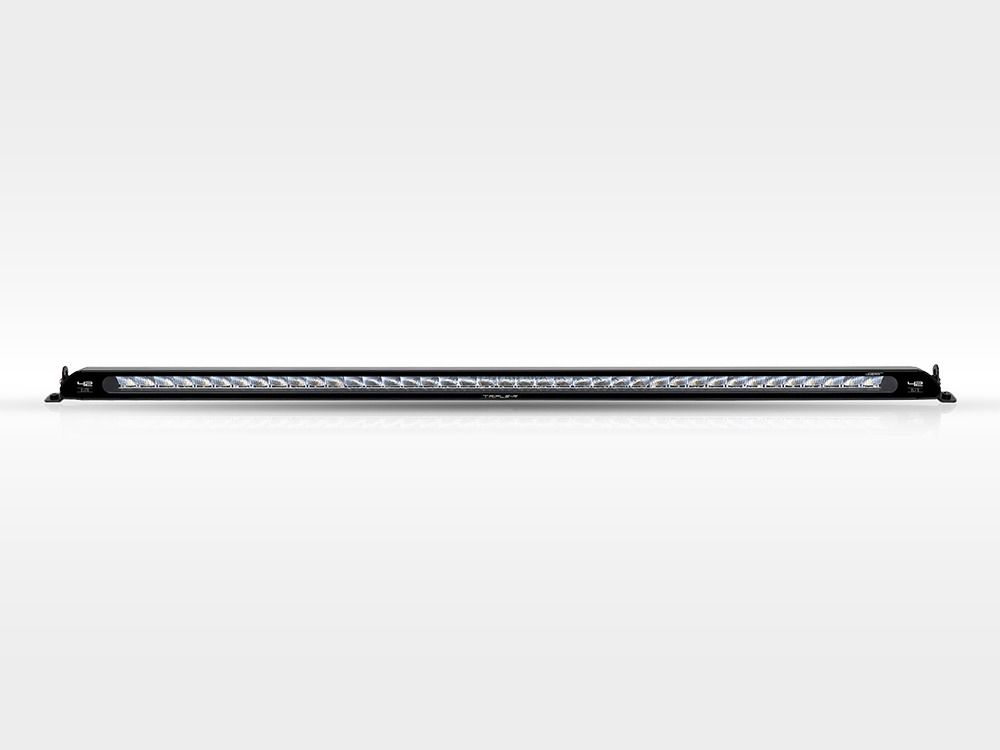

Linear-42 Elite

Product Code
LNR-EL-42
$1,200.00

The Linear-42 Elite utilizes highly efficient 3W LEDs which combine to deliver 33,300 raw lumens, and 1 lux to 765m, with power consumption of just 355W. The lamp weighs 7.7lbs and with its aerodynamic, sleek design, makes a perfect roof mount solution with virtually undetectable additional wind noise. Vacuum-metallized high-reflectivity optics are carefully designed and engineered in-house utilizing the latest CAD design and light simulation software, to deliver optimum light distribution in a drive beam pattern (60 degrees spread). The color temperature of the light at 5000K is carefully selected for its natural appearance proven to reduce driver fatigue.

The clean design of the Linear range provides for a premium look to impress on any vehicle. Supplied stainless steel side brackets allow flexibility in the mounting location and position, while anti-theft fasteners means the light will stay safe and secure.

Like all Triple-R light bars the Linear range benefits from a comprehensive 5 year warranty, and a lifetime guarantee on the polycarbonate lens. Dynamic control modulation, which regulates the light output considering any extreme environmental and thermal conditions of the lamp, helps protect the electronic components from heat damage, and ensures the light performs as well today as it will in many years’ time.



NOT FOR HIGHWAY USE






PAYMENT INFORMATION

Please note all transactions are completed in USD:

For more information visit our Payment Terms page.

DELIVERY INFORMATION

Van icon

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Triple-R Lights warehouse in the US. At the checkout stage, your shipping costs will be calculated. For more information visit our Delivery Information page. Alternatively, We always encourage purchases to be made through one of our local distributors.



For international orders and delivery, please visit www.lazerlamps.com

RETURNS INFORMATION

If you aren't delighted with your purchase, you can return a product within 30 days. For more information visit our Returns page.

Linear-42 Elite

Aerodynamic design virtually eliminates wind noise from roof installations

Highly efficient 3W LED technology

Contemporary design features enhance vehicle aesthetics

Automotive grade corrosion resistance

Reduced up/down spread of light eliminates glare from roof installations

Anti-theft security fixings supplied as standard

Electronic thermal management

Pressure equalization through GoreTex Breather technology

‘Unbreakable’ polycarbonate lens with hardcoat lacquer

IP68 watertight

5 year warranty

Supplied with High Power Aptiv male/female connectors (pre-wired)

Designed & manufactured in the UK

Technical Specifications

Based on: 1x Linear-42 Elite.

Voltage Range (DC) 10-32V
LED Life 50,000 hours
IP Rating IP68
Weight 7.7 lb
HIGH BEAM FUNCTION
Total Luminous Flux 33300 Lm
Total Driver 'FOV' Flux † 23909 Lm
Colour Temperature 5000K
Number of High Output LEDs 84
Power Consumption 355 Watts
Current Draw (at 14.4V) 24.7 Amps
DIMENSIONS
Width 1132 mm
Depth 62 mm
Height 40 mm
PHOTOMETRIC DATA
Horizontal Beam Angle 60 degrees
0.25 lx Line 1530m
0.5 lx Line 1082m
1 lx Line 765m
3 lx Line 442m

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.

What's Included
  • 1x Linear-42 Elite LED Light
  • 1x Anti-Theft Side Mount Kit (1127K)
  • 1x One-Lamp Harness (1L-40A-320)
  • 1x Fitting Instructions
