Introducing Glide, the world’s first ‘formed’ LED light bar. Featuring a monocoque lens construction for highly weight-efficient inherent strength and robustness, Glide is a range of 20” curved light bars that deliver so much especially when considering their ultra low-profile design. The enviable balance of exceptional lighting performance and OE quality aesthetics, sympathetic to the front contours of a diverse number of vehicle types, makes, and models, make Glide an exceptional choice particularly within the passenger car and light commercial sectors.

Befitting any Triple-R product with the ‘Elite’ tag, considering the lamp’s size the Glide Elite delivers the very highest levels of consistent light output in a carefully engineered beam distribution derived from a combination of Spot and Wide optics and LED arrangement. Those optics, vacuum-metallised in-house by Triple-R to maximise reflectivity, harness the 12,800 raw lumens to deliver 1 lux to 624m while still maintaining a 66 degree horizontal spread of light. The ‘premium bin’ LEDs utilised within the Glide Elite lamps are carefully selected for their 80CRI, with this high colour rendering index providing more definition of colours and shapes for a clearer, safer night-driving experience.

Each Glide lamp features an integrated Dynamic Dip mode, allowing for a smooth transition between high and low output modes. The low-output mode, which is DOT/SAE J581 compliant, reduces glare from highly reflective surfaces, like large road signs, for enhanced safety and comfort. Activating the Dynamic Dip function is easy—simply flash the light off and on again after it has been on for more than 2 seconds.

Unlock both style and safety with Glide LED lightbars, which offer an optional integrated white back light. Each lamp comes equipped with a side mounting kit, while additional mounting options are available to customize your setup—choose from a number plate mount or for added peace of mind, an anti-theft side mounting kit. For underside number plate installations, the side mounting kit should be used in conjunction with our universal number plate mount kit (sold separately).

The Glide range of low-profile formed light bars, like all Triple-R LED lighting solutions, are designed and manufactured against unparalleled standards and packed full of advanced and innovative features to maximise performance and longevity. With Glide you can be fully assured of exceptional high-end product design, coupled with superior levels of illumination, all backed by our comprehensive 5-year warranty.

PAYMENT INFORMATION

Please note all transactions are completed in USD:

For more information visit our Payment Terms page.

DELIVERY INFORMATION

Van icon

Goods will be shipped via courier within 2 working days of your order being placed (stock permitting), from Triple-R Lights warehouse in the US. At the checkout stage, your shipping costs will be calculated. For more information visit our Delivery Information page. Alternatively, We always encourage purchases to be made through one of our local distributors.



For international orders and delivery, please visit www.lazerlamps.com

RETURNS INFORMATION

If you aren't delighted with your purchase, you can return a product within 30 days. For more information visit our Returns page.

Glide Elite

‘Formed’ light bar featuring injection-moulded monocoque lens construction

Curved and ultra low-profile lamp design facilitates OE quality vehicle installation

Patent-pending lamp design

Incorporation of the latest high-intensity ‘premium bin’ LEDs

Combined vacuum-metallised spot and wide optic systems deliver optimal light distribution

Dynamic Dip function for transitioning between high and low output modes

SAE/DOT Compliant – Low output mode only

Adoption of black PCB’s for a contemporary and stealth appearance

‘Unbreakable’ polycarbonate lens with hardcoat (with lifetime guarantee*)

Textured effect to the underside of the polycarbonate lens for a unique aesthetic appearance

5000K LED colour temperature and high 80CRI maximises sharpness and definition

Supplied with side mounting kit – Anti-theft side mounting kit / Number plate mount also available (sold separately)

Electronic thermal management system optimises light output to preserve longevity of the LEDs

In-house pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

Over voltage protected

Reverse polarity protected

IP68 watertight – 1.5m submersion (30mins)

5-year warranty

25cm lamp cable with supplied male/female 2-pin Superseal connectors

Designed and manufactured in UK

Technical Specifications


BOOST MODE

LOW OUTPUT MODE


Voltage Range (DC) 10-32V
LED Life 50,000 hours
Weight 1.5 lbs

HIGH BEAM FUNCTION
Total Luminous Flux 12,800 Lm 3,840 Lm
Total Driver 'FOV' Flux † 8,012 Lm 2,403 Lm
Colour Temperature 5000K
Power Consumption 130 Watts 38 Watts
Peak Current Draw 12.6 Amps 2.7 Amps
Current Draw (14.4V) 9.2 Amps 2 Amps
Connector 2-Pin Superseal (+25cm Cable)

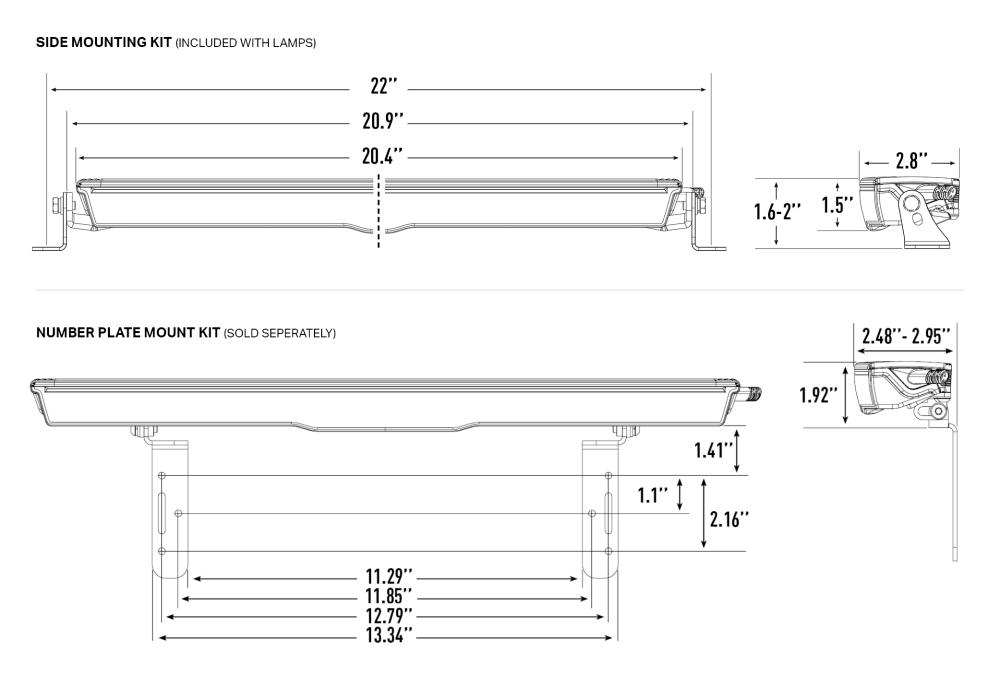

DIMENSIONS
Width 20.4''
Depth 2.8''
Height 1.5''

CERTIFICATION
IP Rating # IP68
High Beam DOT / SAE J581 - Low Output Mode only
Salt Spray Test ISO 9227
Dump Load Protection ISO 7637-2

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle 66° / 14°
0.25 lx Line 1249m 682m
0.5 lx Line 883m 484m
1 lx Line 624m 342m
3 lx Line 361m 197m




† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

# - All Triple-R products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

What's Included
  • Glide Elite LED Lightbar
  • Side Mounting Kit (1131K)
  • Installation Instructions
